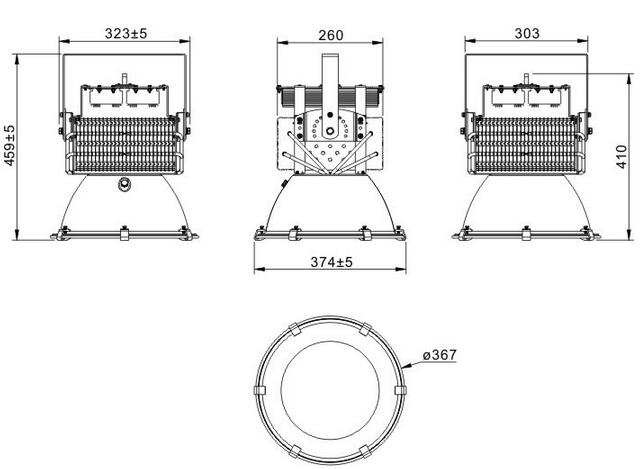

Parameter: Product Item BY-SHB400-400W Warranty time 7 years 7 years Driver(Power supply) MeanWell ELG Version MeanWell HLG Version LED chip CREE (Made in CREE (Made in USA) LED Model CREE-XTE CREE-3030 LED QTY 220pcs 576PCS Power 400W Power Efficiency > 92% Lumens 53000-54000lm Cool white 52000-53000lm Pure White 51000-52000lm Warm White Color temperature(C.C.T/K) 2700-4000K Warm White 4000-5500K Pure White 5500-7000K Cool White Lamp Luminous Efficiency 130-140lm/w Color Rendering Index (CRI) >80Ra Beam Angle(degree） 25°/45°/60°/90°/100° Light Distribution Curve (Beam Pattern) Symmetric / Cone Beam Input Voltages AC 90-305V 47-63 Hz Power factor (P.F.) >0.98 Total Harmonic Distortion(THD) <10% Storage Temperature －40℃--+75℃ Working temperature -45º~65℃ IP Rating IP66 Mechanical Impact IK10 Insulation CLASS Class II Dimension Dia367*H459mm,Checking the dimensional drawing for details Lamp base Hook Working life-span >50000 Hrs Net weight(g) 5kgs
Feature
1. Use advanced Finned aluminum as heat dissipation body
2. High power CREE LEDs.
3. Waterproof of level is IP67 Can used in outdoor.
4. Adopt Meanwell HLG or ELGModel driver (AC90-305V). Also supply AC347/480V
5. Use the aluminum reflector to control bean angle, 25°/45°/60°/90°/100°
6. Meet the specifications of the traditional lamp, can replace the traditional mercury lamp without additional construction.
7. Energy saving than traditional fixture about 70%～80%.
8. Main part of heat dissipation is under the protection of several patents
9. Adapter is compliance with CE&ROHS&PSE&FCC &UL……standard regulations.
