Product Model:

BY-TSRGB-500W

Power:

500W (R G B  /  R G B W), (enough watts )

LEDs Brand:

CREE-XPE2, R /G /B /W

LED Qty:

78R+78G+78B

58R+58G+58B+58W

Red:

1375K(CCT); 625-630nm(Wave); 9120lm(Lumen); CRI>13;

Green:

8520K(CCT);520-525nm(Wave);  12500lm(Lumen); CRI>19;

Blue:

100000K(CCT);465-470nm(Wave);4760lm(Lumen);CRI>40;

White:

5700K(CCT);454.9nm(Wave);25600lm(Lumen); CRI>70;

Bean angl:

5°/8°/15°/24°/30°/60°/120°

Driver Brand:

MeanWell, 90-305V , PF>0.95, THD<10%,
 Surge 4/6KV( 10KV with SPD)

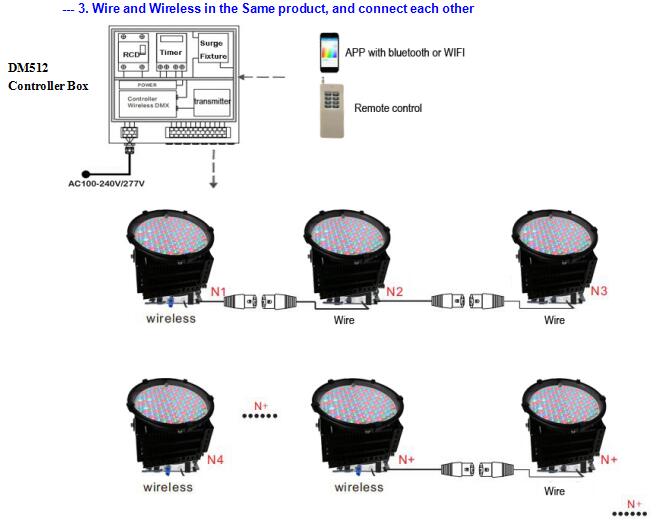

Control mode with Distance :

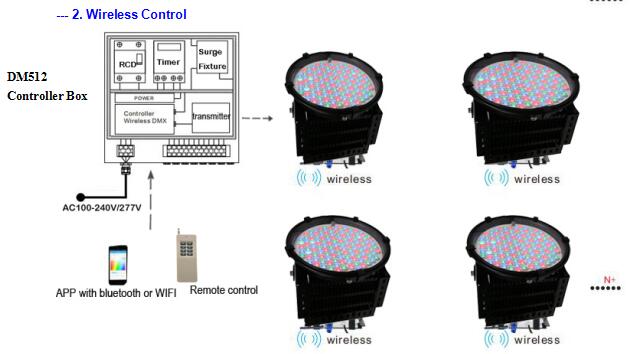

DMX Wireless Control mode with 1 Kilometers.

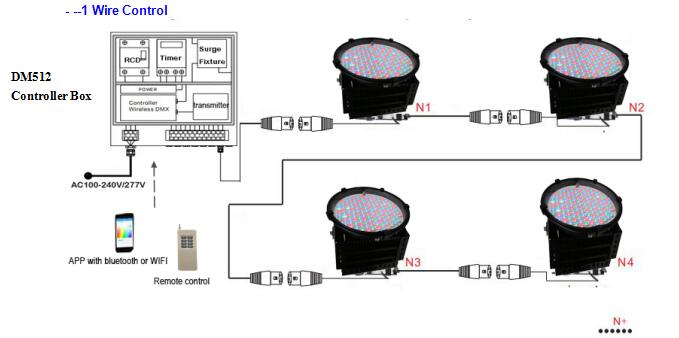

DMX Wire Control mode with Regular Length 1.5 Meters
DMX Optical Fiber mode with 20 Kilometers (add extra cost)
RF Remote Control mode with 300 Meters

IP Rate:

IP67 Waterproof

IK Rate:

IK08

Product dimeion:

485*485*350mm

Illumination distance:

50-100 Meters

Working temperture:

< 60℃（at 25℃）

Application temperture:

 -30℃ —  +50°℃

Warranty time:

5 years,   (Span life >50000hours)
