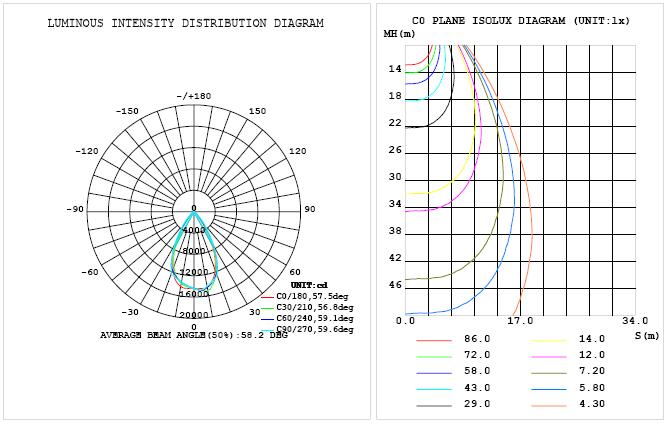

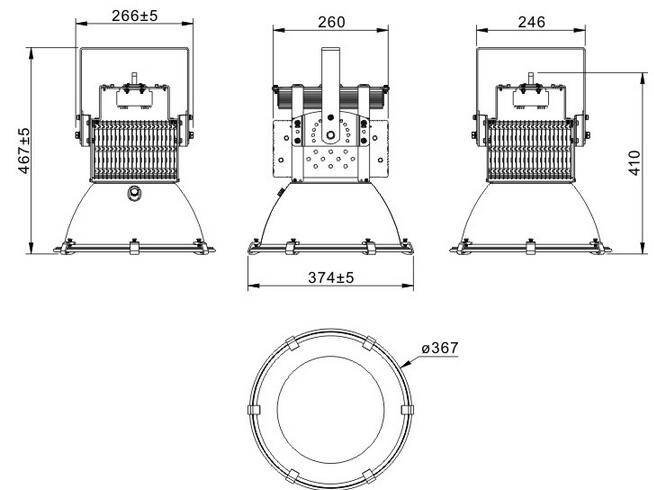

Parameter: Product Item BY-SHB150-150W Warranty time 7 years 5 years Driver(Power supply) MeanWell HLG Version MeanWell ELG Version LED chip Cree (Made in Cree LED Model CREE-XTE Cree3030 LED QTY 75pcs 170PCS Power 150W Power Efficiency > 92% Lumens 21000-21500lm Cool white 20000-21000lm Pure White 19500-20000lm Warm White Color temperature(C.C.T/K) 2700-4000K Warm White 4000-5500K Pure White 5500-7000K Cool White Lamp Luminous Efficiency 135lm/w-145lm/w Color Rendering Index (CRI) >80Ra Beam Angle(degree） 25°/45°/60°/90°/100° Light Distribution Curve (Beam Pattern) Symmetric / Cone Beam Input Voltages AC 90-305V 47-63 Hz Power factor (P.F.) >0.98 Total Harmonic Distortion(THD) <10% Storage Temperature －40℃--+75℃ Working temperature -45º~65℃ IP Rating IP66 Mechanical Impact IK10 Insulation CLASS Class II Dimension Dia367*H467mm,Checking the dimensional drawing for details Lamp base Hook Working life-span >50000 Hrs Net weight(g) 3.8kgs
<, /TR>
Feature
1. Use advanced Finned aluminum as heat dissipation body
2. High power CREE LEDs.
3. Waterproof of level is IP67 Can used in outdoor.
4. Adopt Meanwell HLG or ELGModel driver (AC90-305V). Also supply AC347/480V
5. Use the aluminum reflector to control bean angle, 25°/45°/60°/90°/100°
6. Meet the specifications of the traditional lamp, can replace the traditional mercury lamp without additional construction.
7. Energy saving than traditional fixture about 70%～80%.
8. Main part of heat dissipation is under the protection of several patents
9. Adapter is compliance with CE&ROHS&PSE&FCC &UL……standard regulations.
