Parameter: Product Model Product Item BY-UFO-C1-200W LED chip PHILIPS LED Model SMD2835 -1W LED QTY 394PCS Power 200W Power Efficiency > 92% Lumen 31500-32000lm Cool white 31000-31500lm Pure White 30500-31000lm Warm Whit Color temperature(C.C.T/K) 3000-3500K Warm White 4000-5500K Pure White 5500-6500K Cool White Lamp Luminous Efficiency 150LM/W Color Rendering Index (CRI) >80Ra Beam Angle(degree） 60°/90°/120° Light Distribution Curve (Beam Pattern) Symmetric / Cone Beam Driver(Power supply) MeanWell,/ SOSEN (Options) Input Voltages AC 90-305V,( supply 347V/480V) Frequency Range 47-63 Hz Power factor (P.F.) >0.98 Total Harmonic Distortion <10% Junction Temperature 50℃ ± 10%(ta=25℃) Surge 4/6KV, (10KV with SPD) Storage Temperature －40℃--+80℃ Working temperature -45º~55℃ IP Rating IP65/IP66 Mechanical Impact IK10 Insulation CLASS Class II Lamp base Hook / U Shape Bracket (options) Dimension φ330*193mm Working life-span >50000 Hrs Net weight(g) 3.8kgs Warranty time 5 years
Feature

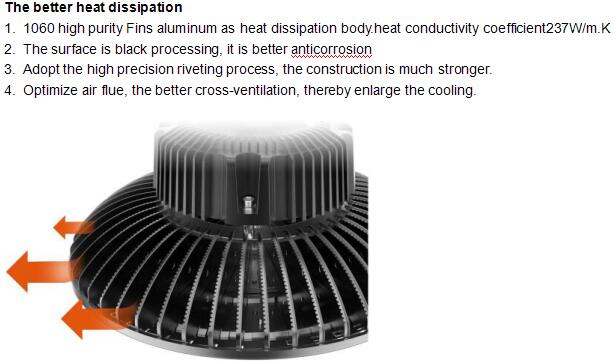

1.1060 high purity Fins aluminum as heat dissipation body
2.Adopt High lumen PHILIPS SMD2835.

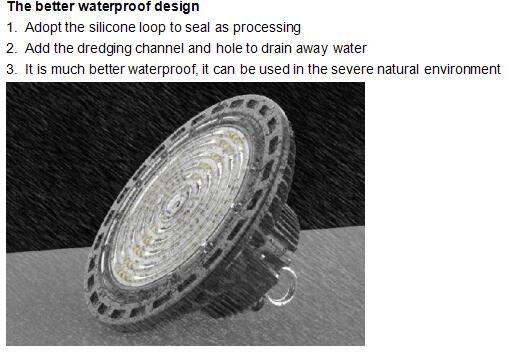

3.Waterproof of level is IP65/66. Can used in outdoor.
4.The surface is black processing,it is better anticorrosion, dust proof.
5.Adopt MeanWell driver (AC90-305V). Also supply AC347/480V

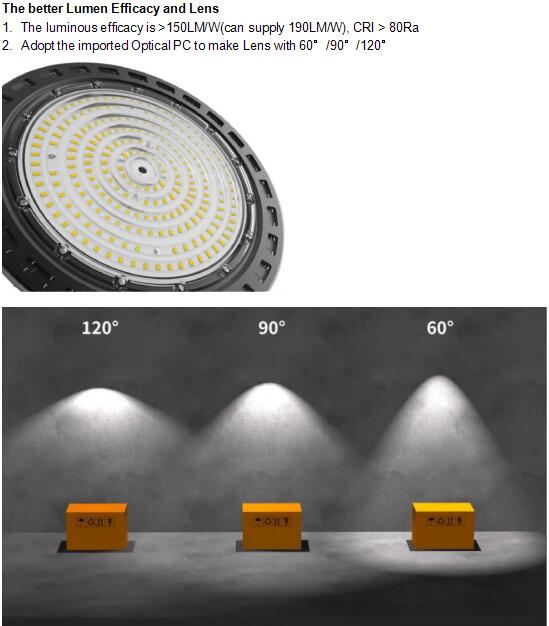

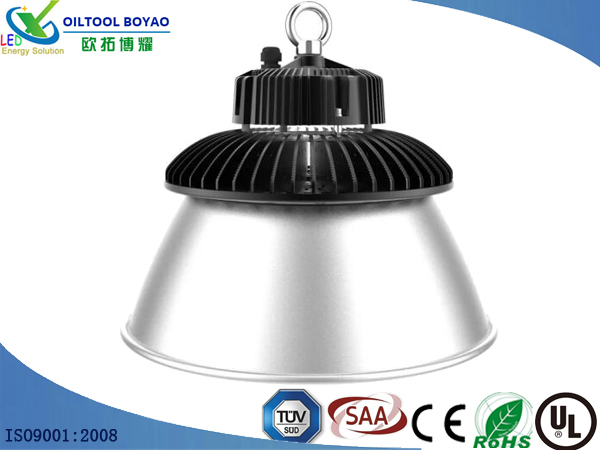

6.bean angle, 60°/90°120°,add the high purity aluminum reflector to restrain dazzle light
7.not Heavy and no bigger. It can reduce the installation cost and freight
8.Meet the specifications of the traditional lamp, can replace the traditional mercury lamp without additional construction.
9.Energy saving than traditional fixture about 70%～80%.
10.Main part of heat dissipation is under the protection of several patents
11.Adapter is compliance with CE&ROHS&FCC UL TUV SAA……standard regulations.
