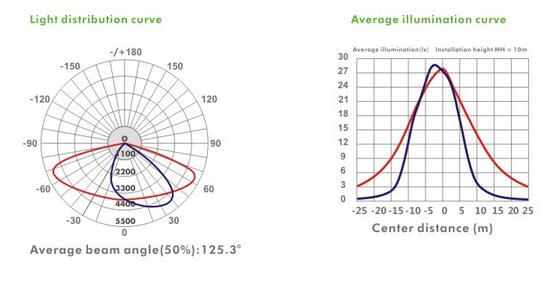

Parameter: Product Item BY-LD3-150WB BY-LD3-200W LED chip Bridgelux 45mil CREE CREE LED Model Bridgelux 45mil CREE-XTE CREE3030 LED QTY 96pcs 96pcs 280pcs Power 150W 200W 200W Lumens 14500-15500lm 19000-20000lm 27000-28000lm Beam Angle(degree） 15°/20°/40 °/60 °/90 ° 15°/90 ° 140°*75° Color temperature(C.C.T/K) 2700-4000K Warm White 4000-5500K Pure White 5500-7000K Cool White Lamp Luminous Efficiency 130/w-140lm/w Color Rendering Index (CRI) >80Ra Power Efficiency > 92% Light Distribution Curve (Beam Pattern) Symmetric / Rectangle Beam Driver(Power supply) Meanwell(Made in Input Voltages AC 85-265V/277V/305V/347V/480V 47-63 Hz Power factor (P.F.) >0.96 Total Harmonic Distortion(THD) <15% Junction Temperature 50℃ ± 10%(ta=25℃) Storage Temperature －40℃--+80℃ Wo, rking temperature -45º~65℃ IP Rating IP65/IP66 Mechanical Impact IK10 Insulation CLASS Class II Dimension 304*766.5*128mm Lamp base Hook Working life-span >50000 Hrs Net weight(g) 3.28kgs Warranty time 5 years
Feature

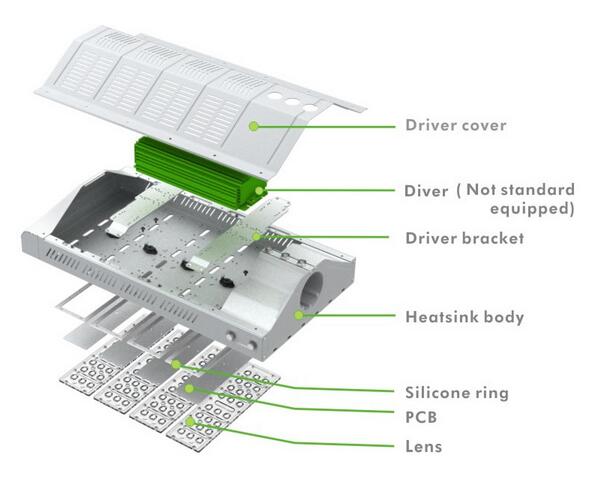

1.Use advanced aviation Aluminum as heat dissipation body
2.High power CREE-XTE (1-5W )/Bridgelux 45mil(1-3W ) or Philips3030chip LEDs.
3.Waterproof of level is IP65. Can used in outdoor.
4.Adopt Meanwell HLG Model driver (AC90-305V). Also supply AC347/480V
5.Use the aluminum reflector to control bean angle, 140*70
6.Meet the specifications of the traditional lamp, can replace the traditional mercury lamp without additional construction.
7.Energy saving than traditional fixture about 70%～80%.
8.Main part of heat dissipation is under the protection of several patents
9.Adapter is compliance with CE&ROHS&FCC UL……standard regulations.
