Parameter:
|
Product Item |
BY-GK-60W |
|
LED chip |
Cree |
|
LED Model |
Cree 3030 |
|
LED QTY |
100pcs |
|
Power |
60W |
|
Power Efficiency |
> 92% |
|
Lumens |
8500-9000lm Cool white 8300-8500lm Pure White 8000-8300lm Warm White |
|
Color temperature(C.C.T/K) |
2700-4000K Warm White 4000-5500K Pure White 5500-7000K Cool White |
|
Lamp Luminous Efficiency |
140-150m/w |
|
Color Rendering Index (CRI) |
>80Ra |
|
Beam Angle(degree） |
60°/90°/110° |
|

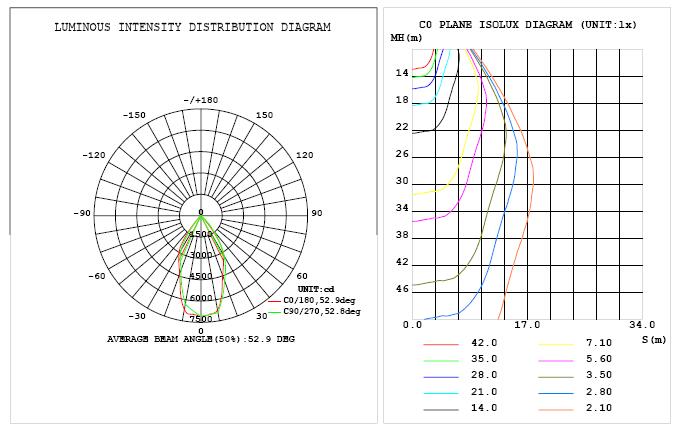

Light Distribution Curve (Beam Pattern) |
Symmetric / Cone Beam |
|
Driver(Power supply) |
Meanwell(Made in |
|
Input Voltages |
AC 85-265V/277V/305V/347V/480V |
|
|
47-63 Hz |
|
Power factor (P.F.) |
>0.96 |
|
Total Harmonic Distortion(THD) |
<15% |
|
Junction Temperature |
50℃ ± 10%(ta=25℃) |
|
Storage Temperature |
－40℃--+80℃ |
|
Working temperature |
-45º~65℃ |
|
IP Rating |
IP65/IP66 |
|
Mechanical Impact |
IK10 |
|
Insulation CLASS |
Class II |
|
Dimension |

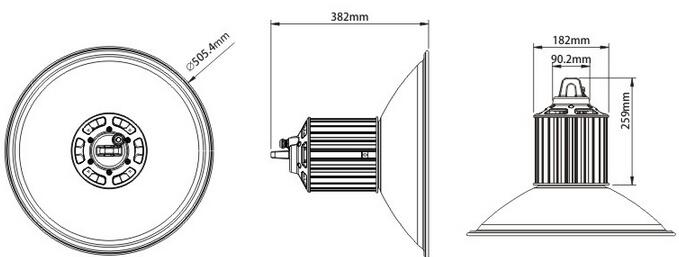

D505*xH382MM,Checking the dimensional drawing for details |
|
Lamp base |
Hook |
|
Working life-span |
>50000 Hrs |
|
Net weight(g) |
2.7kgs |
|
Warranty time |
5 years |
