Parameter: Product Items BY-PL-300x600MM20W BY-PL-300x600MM30W Power consumption 20W 30W Lumens 1800-2000lm 2700-3000lm LED Brand Samsung SMD2835 Luminous Efficacy 95-110lm/w Color temperature(C.C.T/K) 2700-6500K CRI(RA) >80Ra Beam Angle(degree） 120 D LED driver LiFud Power factor (P.F.) >0.95 Input Voltage (V) AC85~265V/277V Dimension 295*595mm, 1X2ft Thickness 10MM Materials Aluminum + LGP + Lighting diffuser plate+ reflective sheeting Installation Recessed /Suspended/ Mounted Working temperature -35º~75℃ IP rating IP44 Net weight(g) 2400g Warranty time 5years Lifespan >50000 Hrs
Features:

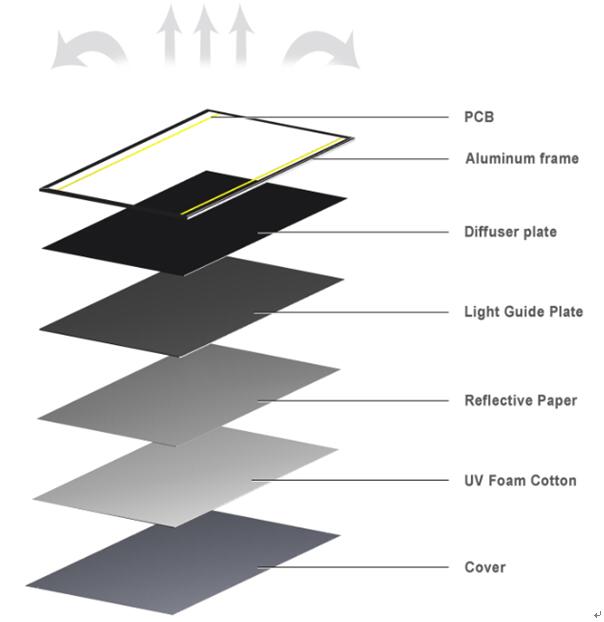

1.Edge-lite technology, Mitsubishi LGP 3MM (light guide plate)+Diffsuer plate + Reflector Paper.
2.Use Sumsung chip,SMD2835
3.PF>0.95. Power Efficiency: >0.90
4.High efficiency: 90-100lm/w
5.CRI: Ra>80
6.The thickness is about 9MM.
7.Dimmable(RCL) or no dimmable option
8.The Size:300*300/300*600/600*600/600*1200/300*1200mm,and manufacure according of your size.

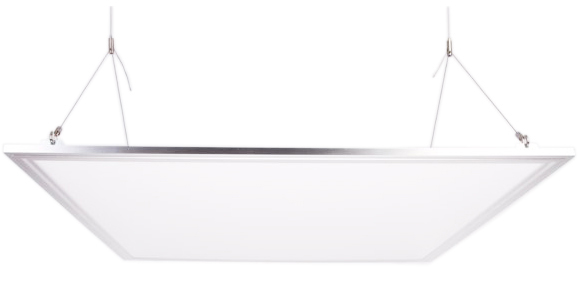

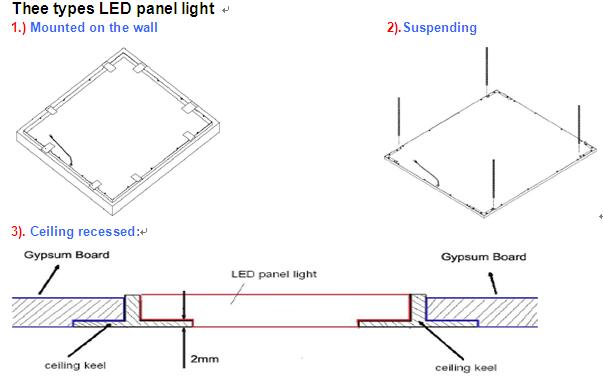

9.Three types :Suspending led panel,Ceiling recessed led panel ,Mounted led panel.
10.Easy installation, being replaced T8/T5 without installing other facilities.
11.The light output is even and soft,no glare,80% more energy saving than fluorescent light source.
12.Fast initiation,no flickering,no RF.
3.Adapter approved CE,ROHS,FCC,SAA UL..certification.
This type for European This type for USA with UL
