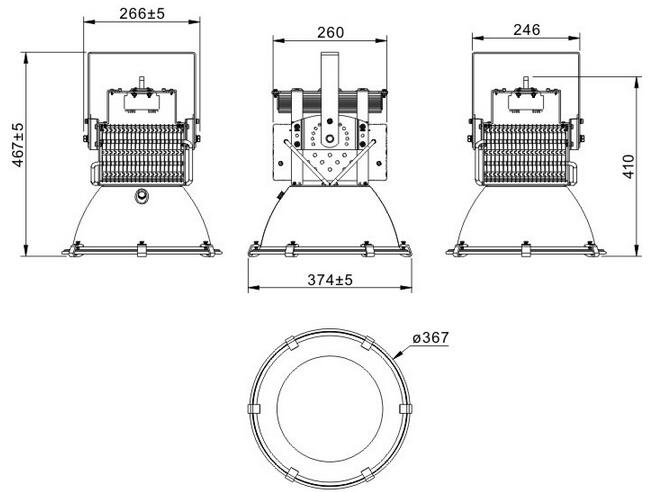

Parameter: Product Item BY-SHB300-300W Warranty time 7 years 5 years Driver(Power supply) MeanWell HLG Version MeanWell ELG Version LED chip CREE (Made in CREE (Made in LED Model CREE-XTE CREE 3030 LED QTY 168pcs 300PCS Power 300W Power Efficiency > 92% Lumens 39000-40000lm Cool white 38000-39000lm Pure White 37000-38000lm Warm White Color temperature(C.C.T/K) 2700-4000K Warm White 4000-5500K Pure White 5500-7000K Cool White Lamp Luminous Efficiency 130lm/w-140lm/w Color Rendering Index (CRI) >80Ra Beam Angle(degree） 25°/45°/60°/90°/100° Light Distribution Curve (Beam Pattern) Symmetric / Cone Beam Input Voltages AC 90-305V 47-63 Hz Power factor (P.F.) >0.98 Total Harmonic Distortion(THD) <10% Storage Temperature －40℃--+75℃ Working temperature -45º~65℃ IP Rating IP66 Mechanical Impact IK10 Insulation CLASS Class II Dimension Dia374*H467mm,Checking the dimensional drawing for details Lamp base Hook Working life-span >50000 Hrs Net weight(g) 3.5kgs
,
Feature
1. Use advanced Finned aluminum as heat dissipation body
2. High power CREE LEDs.
3. Waterproof of level is IP67 Can used in outdoor.
4. Adopt Meanwell HLG or ELGModel driver (AC90-305V). Also supply AC347/480V
5. Use the aluminum reflector to control bean angle, 25°/45°/60°/90°/100°
6. Meet the specifications of the traditional lamp, can replace the traditional mercury lamp without additional construction.
7. Energy saving than traditional fixture about 70%～80%.
8. Main part of heat dissipation is under the protection of several patents
9. Adapter is compliance with CE&ROHS&PSE&FCC &UL……standard regulations.
