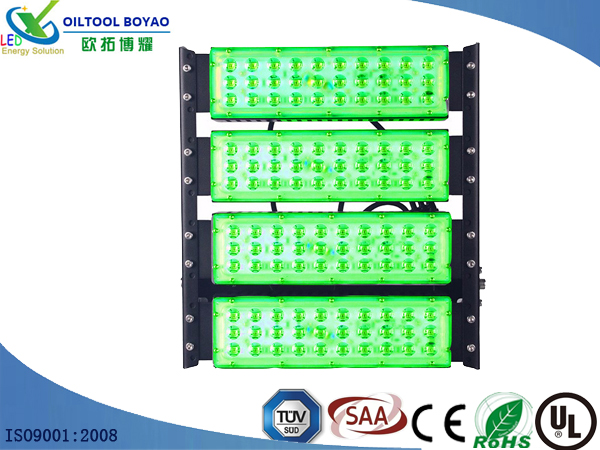

Product Model:

BY-MRGB-200W

Power:

200W (R G B W)

LEDs Brand:

Epistar 3030, R /G /B /W

LED Qty:

120R+120G+120B+120W

Red:

1375K(CCT); 625-630nm(Wave); 2160lm(Lumen); CRI>13;

Green:

8520K(CCT);520-525nm(Wave);  2960lm(Lumen); CRI>19;

Blue:

100000K(CCT);465-470nm(Wave);960lm(Lumen);CRI>40;

White:

5700K(CCT);454.9nm(Wave);5980lm(Lumen); CRI>70;

Bean angl:

60° / 90° / 70*145°

Driver Brand:

MeanWell, 90-305V , PF>0.95, THD<10%,                                                             Surge 4/6KV( 10KV with SPD)

Control mode with Distance :

DMX Wireless Control mode with 1 Kilometers.
DMX Wire Control mode with Regular Length 1.5 Meters
DMX Optical Fiber mode with 20 Kilometers (add extra cost)
RF Remote Control mode with 300 Meters

IP Rate:

IP66 Waterproof

IK Rate:

IK10

Product Dimension:

302*326*168MM

Illumination distance:

10-15 Meters

Working temperature:

< 60℃（at 25℃）

Application temperature:

 -30℃ —  +50°℃

Warranty time:

3 years,   (Span life >35000hours)
