Parameter:
|
Product Item |
BY-LD3-40W |
BY-LD3-50W |
BY-LD350WB |
|
LED chip |
Bridgelux 45mil |
CREE |
CREE |
|
LED Model |
Bridgelux 45mil |
CREE-XTE |
CREE3030 |
|
LED QTY |
24pcs |
24pcs |
70pcs |
|
Power |
40W |
50W |
50W |
|
Lumens |
4000-4500lm |
4800-5200lm |
6500-7000lm |
|
Beam Angle(degree） |
15°/20°/40 °/60 °/90 ° |
15°/90 ° |
140°*75° |
|
Color temperature(C.C.T/K) |
2700-4000K Warm White 4000-5500K Pure White 5500-7000K Cool White | ||
|
Lamp Luminous Efficiency |
130/w-140lm/w | ||
|
Color Rendering Index (CRI) |
>80Ra | ||
|
Power Efficiency |
> 92% | ||
|

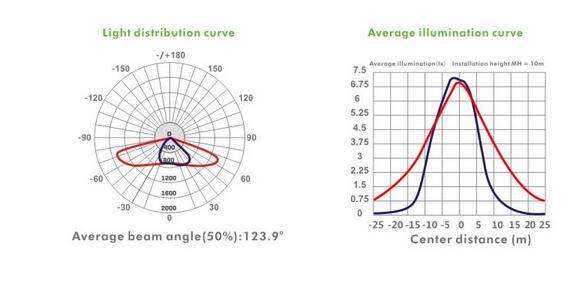

Light Distribution Curve (Beam Pattern) |
Symmetric / Rectangle Beam | ||
|
Driver(Power supply) |
Meanwell(Made in | ||
|
Input Voltages |
AC 85-265V/277V/305V/347V/480V | ||
|
|
47-63 Hz | ||
|
Power factor (P.F.) |
>0.96 | ||
|
Total Harmonic Distortion(THD) |
<15% | ||
|

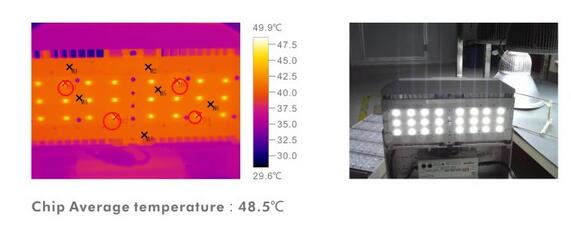

Junction Temperature |
50℃ ± 10%(ta=25℃) | ||
|
Storage Temperature |
－40℃--+80℃ | ||
|
Working temperature |
-45º~65℃ | ||
|
IP Rating |
IP65/IP66 | ||
|
Mechanical Impact |
IK10 | ||
|
Insulation CLASS |
Class II | ||
|
Dimension |
304*490.5*128mm | ||
|
Lamp base |
Hook | ||
|
Working life-span |
>50000 Hrs | ||
|
Net weight(g) |
1.98kgs | ||
|
Warranty time |
5 years | ||
