Parameter:
|
Product Model |
BY-T51200-18W |
BY-T51200-22W |
|
LED Quantity |
96pcs |
120pcs |
|
Power Consumption |
18W |
22W |
|
Luminous Flux(lm) |
2200-2400lm |
2600-2800lm |
|
LED chip |
Epistar, SMD2835 | |
|
CRI |
>80 | |
|
Color Temperature(C.C.T/K) |
2700-6500K | |
|
LED driver |
Isolation driver or Non isolation driver for option | |
|
Power Factor |
>0.90 | |
|
Input Voltage (V) |
AC100-240V, AC100-300V | |
|
Dimension |
Φ15*1200mm | |
|
Diameter |
T5/Φ15, 4ft | |
|
Lamp Base |
Integrated/G5 | |
|
Bean angle |
120°+10° | |
|
PC |
Milky PC/Transparent PC / Stripped PC for your option | |
|
Material |
1/2PC+1/2 Aluminum | |
|
Operating Temperature |
-45℃~65℃ | |
|
Net Weight (g) |
370g | |
|
LED Span life |
>50000 Hrs | |
|
Warranty time |
3years, 5 Years for option | |
1. High 1/2 aluminum heat-sink+1/2 Milky PC/Transparent PC /stripped PC cover
2. Use

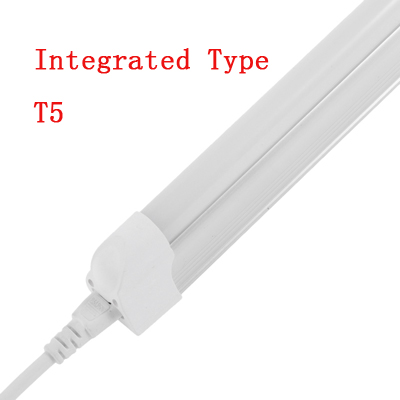

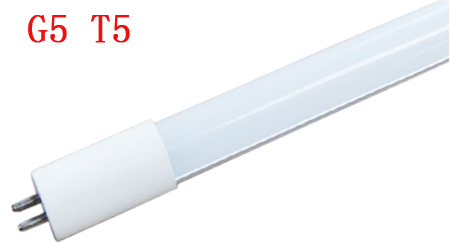

3. Integration tube or G5
4. Single end power or Double end power
5. Adopt Ledfriend driver, more safer for user,Input voltage: AC85-265V, Also supply 277V/300V/347V
6. Length is 600MM/900MM/1200MM/1500MM/1800MM/2400MM
7. Round tube or oval-shaped tube.
8. The led tubes have been passed CE&ROHS&FCC&PSE&EMC SAA CSA UL DLC
