Product Items |

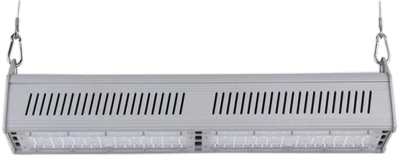

BY-LHB400W |
|
LED light source(LED chip) |
CREE |
|
LED Brand |
CREE 3030 (Made in |
|
LED Luminous Efficiency |
160-170lm/w |
|
LED Qty |
480PCS |
|
Power |
400W |
|
Power Efficiency |
> 92% |
|
Lamp Luminous Flux |
50000-52000lm |
|
Color temperature(C.C.T/K) |
2700-6500K |
|
Lamp Luminous Efficiency |
130-140lm/w |
|
Color Rendering Index (CRI) |
>80 |
|
Beam Angle(degree） |
30°/60°/90°/30°x70°/60°x90°/60°x120°/70°x140° |
|
Light Distribution Curve (Beam Pattern) |
Asymmetric (Bat Wing) / Rectangular Beam |
|
Driver(Power supply) |
Meanwell(Made in |
|
Input Voltages |
AC 85-265V/277V/305V/347V/480V |
|
|
47-63 Hz |
|
Power factor (P.F.) |
>0.96 |
|
Total Harmonic Distortion(THD) |
<15% |
|
Junction Temperature |
50℃ ± 10%(ta=25℃) |
|
Storage Temperature |
－40℃--+80℃ |
|
Working temperature |
-45º~65℃ |
|
IP Rating |
IP65/IP66 |
|
Mechanical Impact |
IK10 |
|
Insulation CLASS |
Class II |
|
Dimension |
1214x230x173mm |
|
Installation |
Mounted/Suspended |
|
Working life-span |
>50000 Hrs |
|
Warranty time |
5 years |
