Parameter:

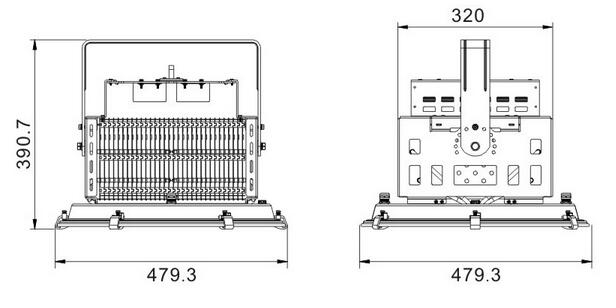

Product Item BY-TS500-500W LED chip CREE(Made in LED Model CREE-XML2 LED QTY 84pcs Power 500W Power Efficiency > 92% Lumens 48000-50000 Color temperature(C.C.T/K) 2700-4000K Warm White 4000-5500K Pure White 5500-7000K Cool White Lamp Luminous Efficiency 100lm/w-120lm/w Color Rendering Index (CRI) >80Ra Beam Angle(degree） 6°/10°/20°/30°/60° Light Distribution Curve (Beam Pattern) Symmetric / Cone Beam Driver(Power supply) MeanWell(Made in Input Voltages AC 90-305V 47-63 Hz Power factor (P.F.) >0.98 Total Harmonic Distortion(THD) <10% Storage Temperature －40℃--+80℃ Working temperature -45º~65℃ IP Rating IP65/IP66 Mechanical Impact IK10 Insulation CLASS Class II Dimension Ø479xH320mm,Checking the dimensional drawing for details Lamp base Hook Working life-span >50000 Hrs Net weight(g) 7.5kgs Warranty time 7 years
Feature

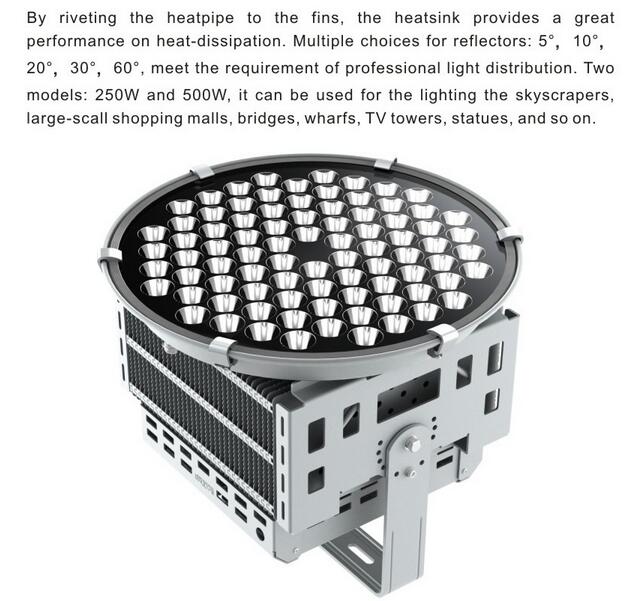

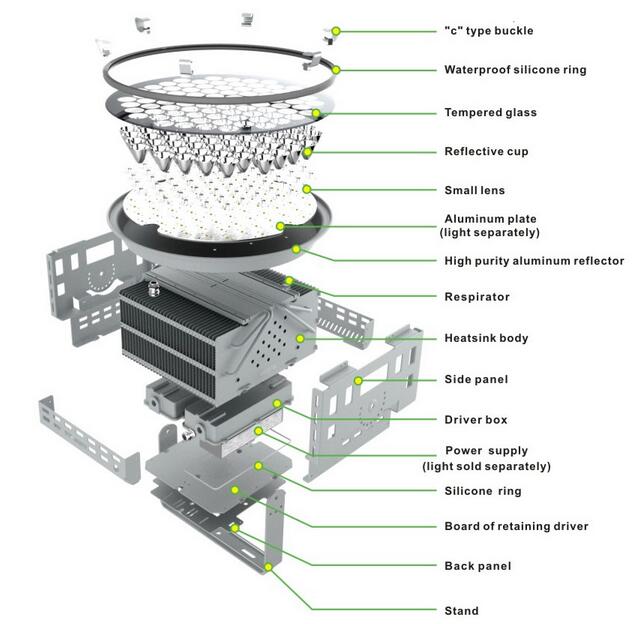

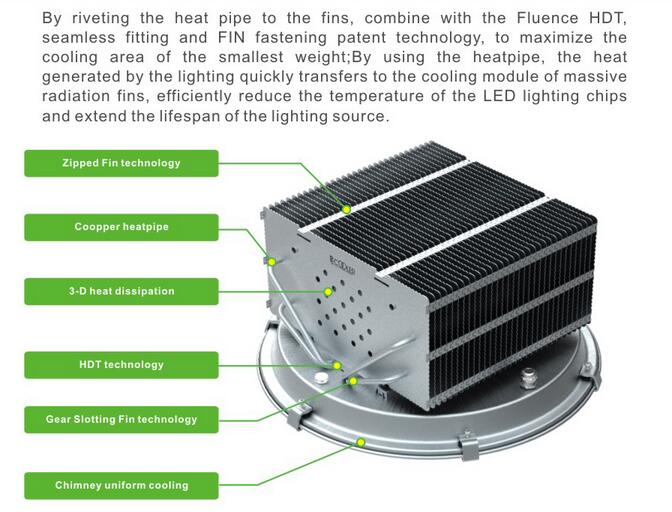

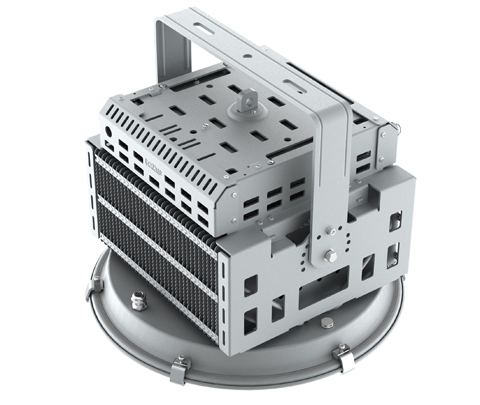

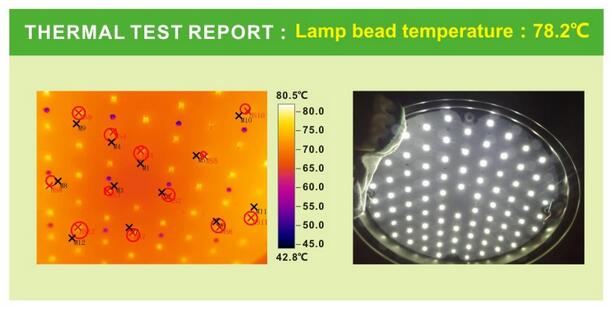

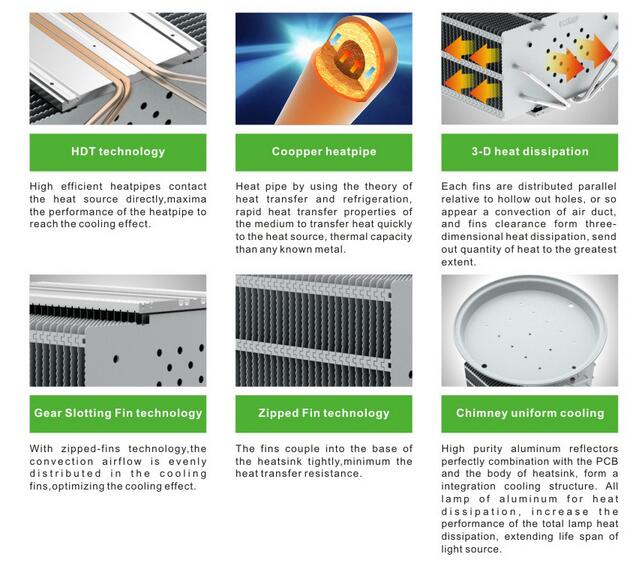

1.Use advanced Finned aluminum as heat dissipation body

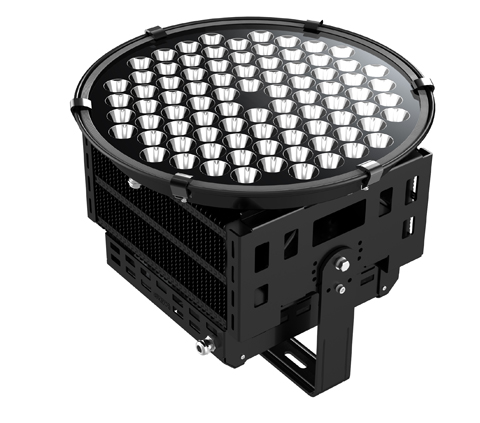

2.High power CREE-XML2 chip LEDs.
3.Waterproof of level is IP65/IP66. Can used in outdoor.
4.Adopt Meanwell HLG Model driver (AC90-305V). Also supply AC347/480V

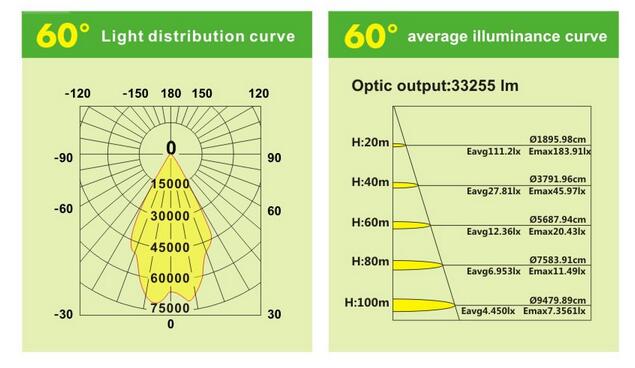

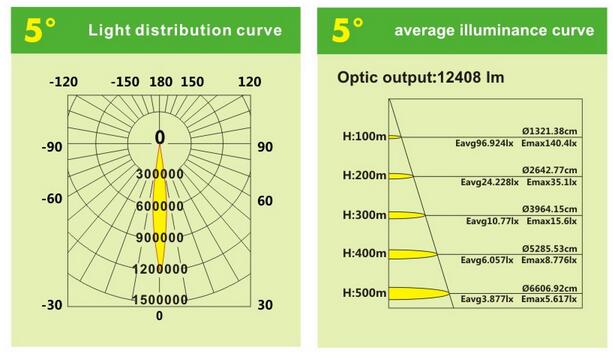

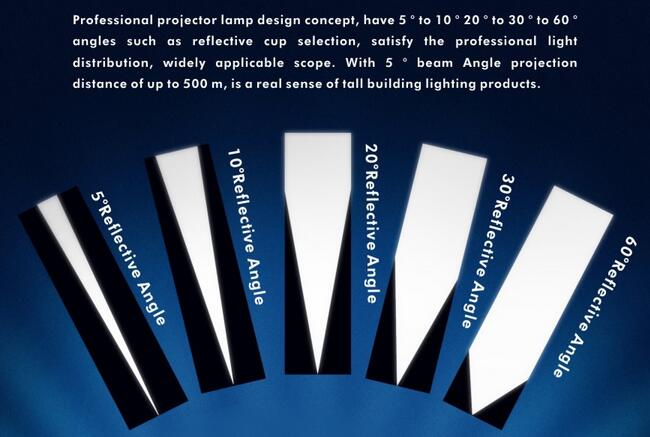

5.Use the aluminum reflector to control bean angle, 6°/10°/20°/30°/60°
6.Meet the specifications of the traditional lamp, can replace the traditional mercury lamp without additional construction.
7.Energy saving than traditional fixture about 70%～80%.
8.Main part of heat dissipation is under the protection of several patents
9.Adapter is compliance with CE&ROHS&PSE&FCC &UL……standard regulations.
