Parameter:
|
Product Item |
BY-3TF1500MM-30W |
BY-3TF1500MM-50W |
BY-3TF1500MM-50W B |
BY-3TF1500MM- 60W |
|
Dimension |
1565*86*80mm |
1565*86*80mm |
1565*118*80mm |
1565*118*80mm |
|
Power |
30W |
50W |
50W |
60W |
|
Lumen |
3600-3800lm |
6000-6500lm |
6000-6500lm |
7200-8000lm |
|
LED chip |
Epistar/SMD 2835 with LM80 | |||
|
Color temperature(C.C.T/K) |
2700-6500K | |||
|
Power Efficiency |
> 92% | |||
|
Lamp Luminous Efficiency |
120lm/w-130lm/w | |||
|
Color Rendering Index (CRI) |
>80Ra | |||
|
Beam Angle(degree） |
120° | |||
|
Light Distribution Curve (Beam Pattern) |
Symmetric / Rectangle Beam | |||
|
Driver(Power supply) |
LiFud driver or MeanWell driver for option | |||
|
Input Voltages |
AC 100-240V. 100-277V, 347V/480V for option | |||
|
Frequency Range |
47-63 Hz | |||
|
Power factor (P.F.) |
>0.96 | |||
|
Total Harmonic Distortion(THD) |
<15% | |||
|
Junction Temperature |
50℃ ± 10%(ta=25℃) | |||
|
Storage Temperature |
－40℃--+80℃ | |||
|
Working temperature |
-45º~65℃ | |||
|
IP Rating |
IP65/IP66 | |||
|
Insulation CLASS |
Class II | |||
|
Fire protection |
V2 | |||
|
Lamp base |
Hanged/Mounted | |||
|
Working life-span |
>50000 Hrs | |||
|
Warranty time |
5 years | |||
Feature

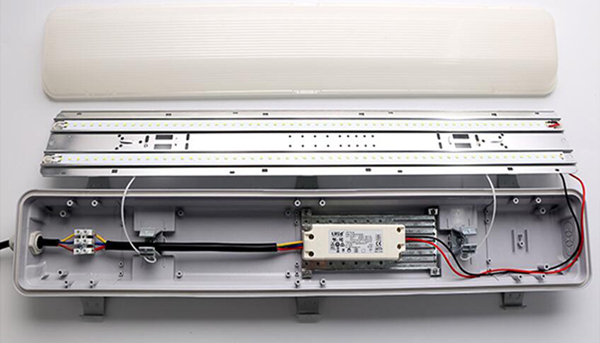

1.Use advanced Finned aluminum as heat dissipation body
2.PC+PC housing shell with V2 Fire protection, corrosion prevention
3.Epistar SMD2835 with LM80 LEDs
4.Waterproof of level is IP65/IP66. Can used in outdoor.
5.Adopt LiFud or Meanwell driver (AC90-305V/347/480VAC).
6.Meet the specifications of the traditional lamp, can replace the traditional mercury lamp without additional construction. its easy to install led lighting ,Independent power supply design, Corrosion resistance is strong
8.Low heat, no hot-radioactive, non-mercury, sodium and other elements harmful to human health
9.LED light is all-solid-body, resist impact, not easy broken, waste recycling pollution-free
10.Energy saving than traditional fixture about 70%～80%.
11.Meet the specifications of the traditional lamp can directly replace the traditional lamp, No additional construction
12.Adapter is compliance with CE&RoHS&FCC&PSE UL……standard regulations
